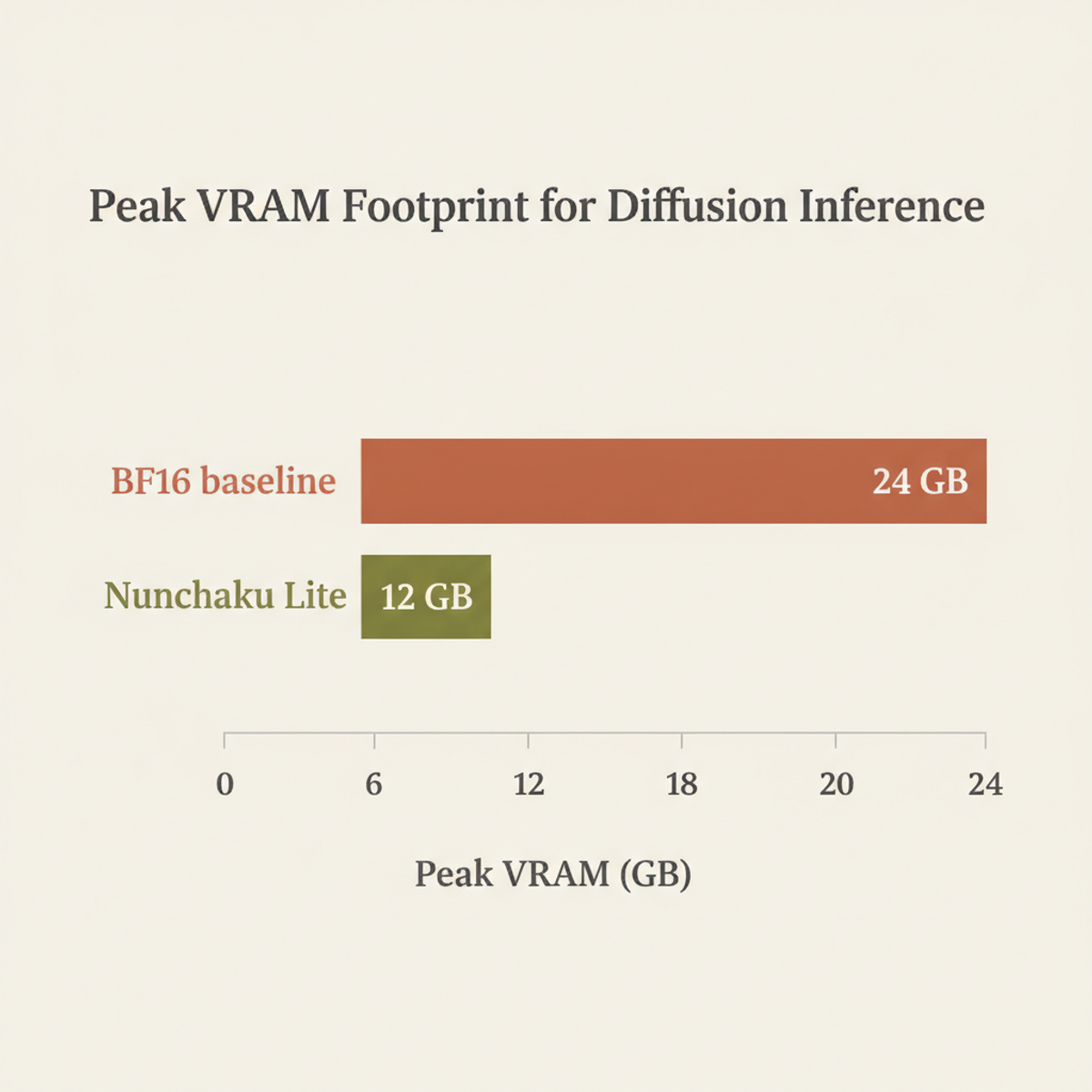

Nunchaku Lite has been integrated into HuggingFace Diffusers, enabling true 4-bit W4A4 quantization in standard text-to-image pipelines without the need for custom pipeline classes or local CUDA compilation. According to a HuggingFace blog post by Pham Hong Vinh and Sayak Paul, this integration reduces peak VRAM usage on an RTX 5090 from approximately 24 GB in BF16 to around 12 GB when generating a 1024×1024 image, and decreases single-sample latency to approximately 1.7 seconds.
Most existing quantization backends, such as bitsandbytes, GGUF, torchao, and Quanto, focus on weight-only quantization, storing parameters at low precision but dequantizing to 16-bit at compute time. This reduces memory footprint but often increases latency. SVDQuant, the method behind Nunchaku, quantizes both weights and activations to 4-bit, addressing the outlier problem by moving activation outliers into the weights, retaining a small 16-bit low-rank branch for the most challenging slice of each weight matrix, and forcing the residual to 4 bits. The original Nunchaku engine combined low-rank projections with quantization and 4-bit GEMM kernels to eliminate extra memory passes. Nunchaku Lite removes these architecture-specific fused kernels, maintaining the same VRAM reduction but offering a more modest ~30% speedup over BF16 while staying within the standard Diffusers load path.
The Lite implementation modifies nn.Linear modules with runtime SVDQ and AWQ layers before checkpoint loading. Compute-intensive transformer attention and MLP projections operate on svdq_w4a4 kernels—INT4 for Ampere and Ada Lovelace, NVFP4 for Blackwell—while adaptive normalization and modulation layers, which are memory-bound and precision-sensitive, use awq_w4a16 (4-bit weights, 16-bit activations). Ready-to-use checkpoints are available on the Hub for models such as ERNIE-Image-Turbo, and the accompanying diffuse-compressor toolkit allows teams to quantize new architectures and publish them as standard Diffusers repos.
The operational picture is incomplete. The published benchmarks are single-sample runs on an RTX 5090; batch throughput, p50/p99 variance, and dollar-per-image cost are absent. More importantly, the blog post lacks FID, CLIP, or human-preference scores against the BF16 baseline, so the image-quality impact of W4A4 remains unquantified. NVFP4 kernels are also limited to Blackwell-class silicon; teams on earlier hardware must use the INT4 variant, and the relative latency and fidelity gaps between INT4 and NVFP4 are unpublished.
Integration is straightforward. After installing the standard Diffusers stack and the kernels package, a pipeline loads from a Nunchaku checkpoint via from_pretrained without code changes, and CUDA kernels are fetched from the Hub automatically. For teams maintaining proprietary fine-tunes, the diffuse-compressor workflow simplifies custom quantization into a self-service publish-to-Hub operation rather than a forked inference engine.
The key takeaway is the surgical mixed-precision split: use aggressive W4A4 plus low-rank residual correction for compute-bound attention and MLP blocks, while employing a milder W4A16 scheme for memory-bound modulation layers. Avoid applying a single bit width to an entire diffusion transformer.
