University of Cambridge researchers have built a hafnium-oxide memristor with switching currents roughly one million times lower than conventional oxide-based devices. The neuromorphic architecture it enables could cut AI system energy consumption by up to 70%.

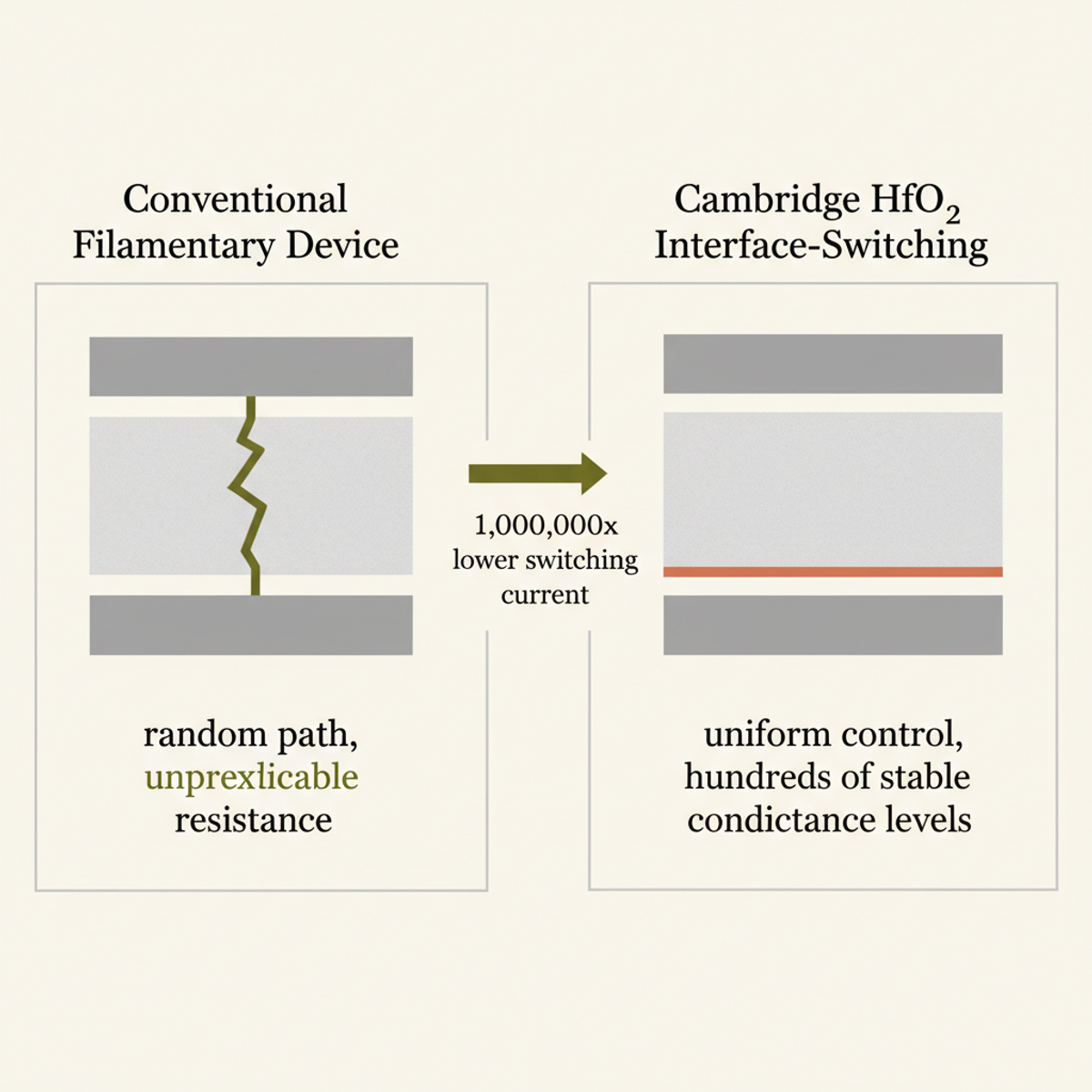

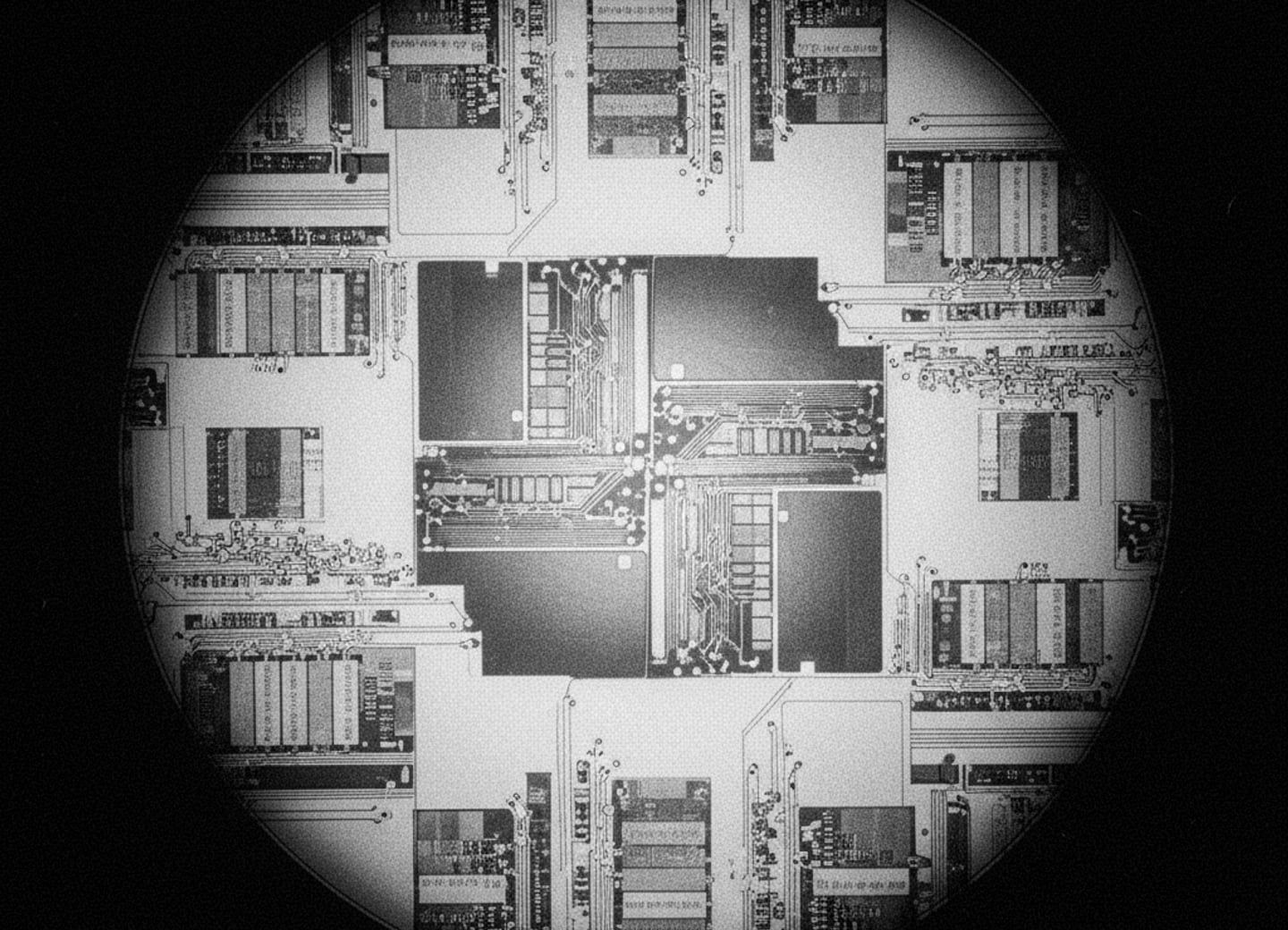

The device is detailed in Science Advances by lead author Dr. Babak Bakhit, from Cambridge's Department of Materials Science and Metallurgy. Its core innovation is a departure from the filamentary switching mechanism that has stalled memristor research for over a decade. Standard memristors store data by forming and rupturing tiny conductive filaments inside metal oxide, a process that is unpredictable and voltage-hungry. Bakhit's team added strontium and titanium to a hafnium-oxide thin film and grew it in two steps: the first layer deposited without oxygen, the second with. That sequence forms p-n junctions (electronic gates) at the layer interfaces. Resistance changes by shifting the height of an energy barrier at that interface, not by growing or breaking filaments.
The result is tight device uniformity that has eluded the field. Lab tests showed the devices endure tens of thousands of switching cycles, maintain programmed states for approximately 24 hours, and produce hundreds of distinct, stable conductance levels, a prerequisite for analog in-memory computing. The devices also reproduced spike-timing dependent plasticity (STDP), the biological learning rule by which neural connections strengthen or weaken based on signal timing. "These are the properties you need if you want hardware that can learn and adapt, rather than just store bits," Bakhit said.
For enterprise AI architects, the 70% energy reduction figure warrants scrutiny of scope. It describes the potential of neuromorphic architectures broadly, not a measured power delta against a production GPU workload. The mechanism is the elimination of the Von Neumann bottleneck: in conventional chips, the processor and memory are separate components that constantly transfer data across a shared bus. An in-memory architecture, where the memristor simultaneously stores weights and executes multiply-accumulate operations, eliminates that round-trip. At data center scale, where large AI inference clusters draw tens of megawatts, eliminating that overhead compounds.
The CMOS-compatibility angle is the more actionable signal for fab strategy and procurement teams. Hafnium oxide is already embedded in modern CMOS gate dielectrics; the base material requires no new fab lines or exotic precursors. Cambridge Enterprise, the university's commercialization arm, has filed a patent application, a standard precursor to industry licensing discussions. Funding came from the Royal Academy of Engineering, the Royal Society, the Swedish Research Council, and UKRI.

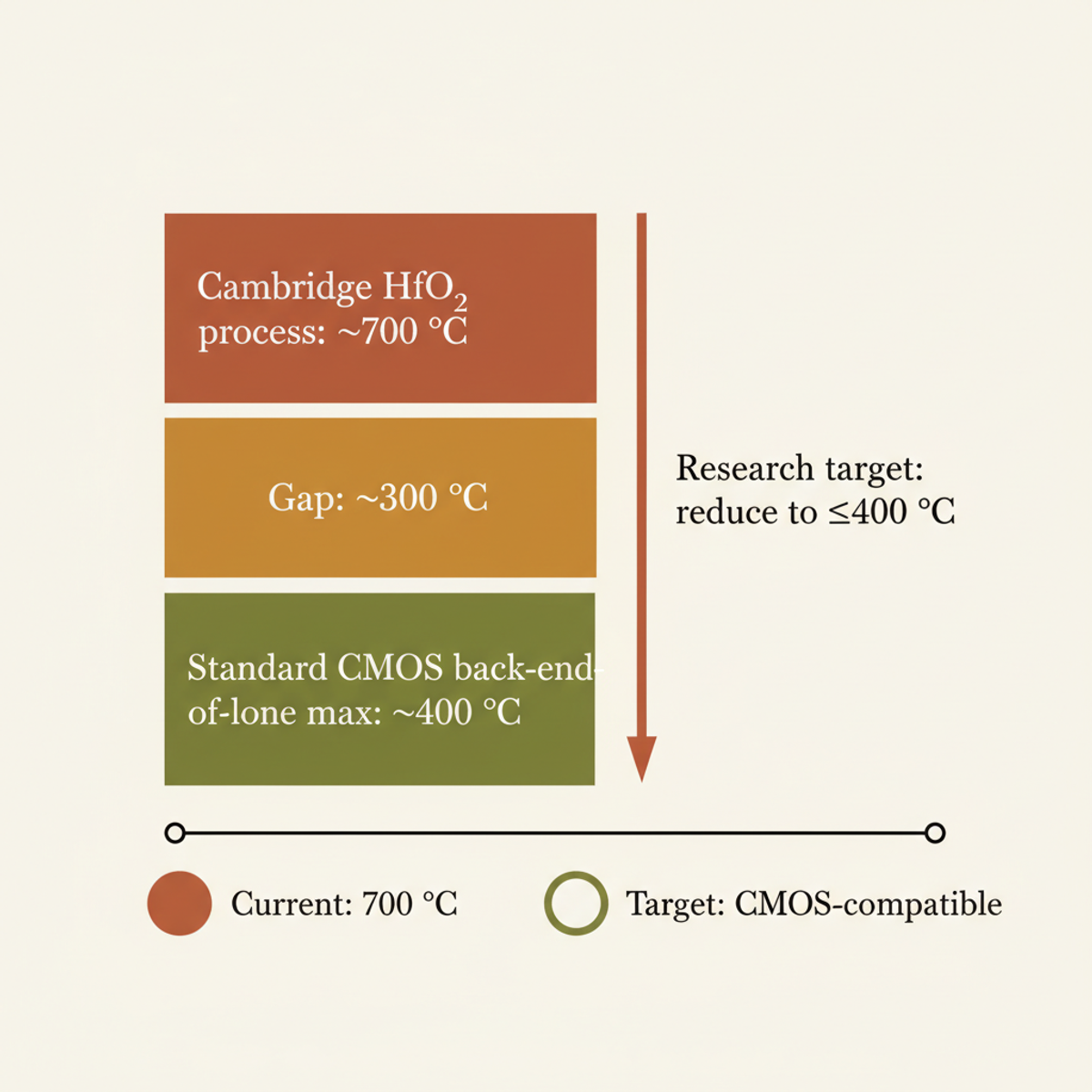

The blocking constraint is thermal: the current fabrication process requires approximately 700°C, above the tolerances of standard back-end-of-line semiconductor manufacturing. That threshold matters because the post-silicon layers where memristors would integrate for maximum effect cannot withstand processing above roughly 400°C without damaging underlying structures. Bakhit was direct: "This is currently the main challenge in our device fabrication process. But we're now working on ways to bring the temperature down to make it more compatible with standard industry processes."
The 24-hour state retention figure also merits scrutiny. Stateful inference workloads requiring sub-day retention would need periodic write-back to conventional non-volatile storage, partially eroding the energy savings from eliminating memory bus traffic. The paper does not report multi-chip scaling experiments or inference accuracy benchmarks against GPU baselines.
Bakhit spent approximately three years on this research, with the decisive result arriving at the end of November last year. The next gate is a fabrication temperature below 400°C and retention measured in months, not hours. Until both conditions are met, this is a rigorous laboratory result with a credible commercialization path, not yet a fab roadmap.
