Hugging Face's new PyTorch profiling series installment focuses on optimizing attention bottlenecks in production serving stacks, guiding engineers from a naive six-kernel attention implementation to a single fused kernel. This transition can lead to 20-40% end-to-end throughput gains for inference workloads, depending on attention optimization. The tutorial is conducted on an NVIDIA A100-SXM4-80GB using Hugging Face Spaces Dev Mode or HF Jobs, and includes four scripts that incrementally refine causal attention.

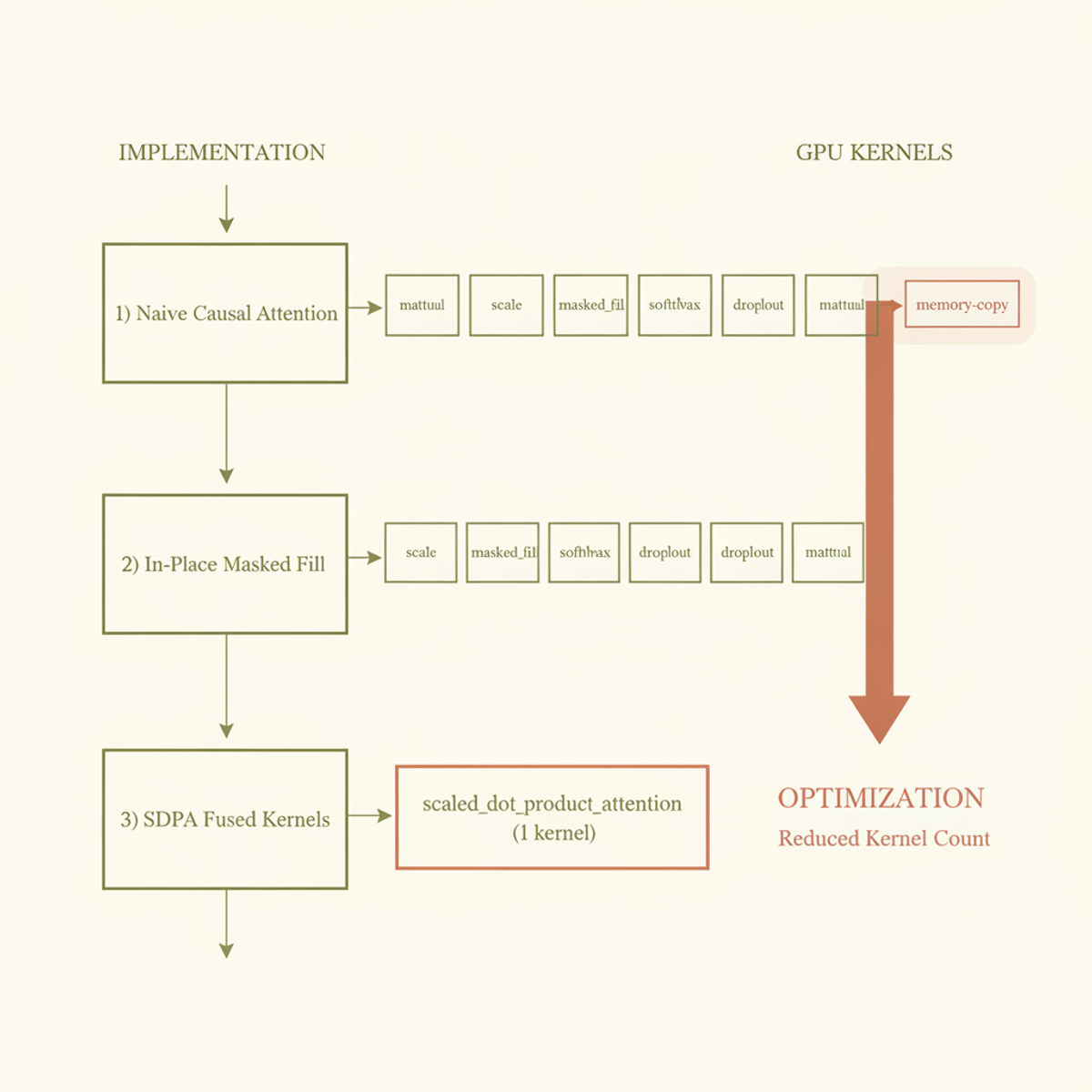

The initial naive implementation, involving a matmul between Q and K.transpose, scaling, masked_fill for the causal mask, softmax, and the final matmul with V, dispatches five expected GPU kernels per forward step. The profiler trace reveals a sixth, unexpected kernel: a memory-copy inserted by PyTorch's out-of-place masked_fill, which duplicates the scores tensor before applying the causal mask and consumes memory bandwidth.
Switching from masked_fill to masked_fill_ (the underscore enforces in-place mutation) eliminates the extra memory copy from the GPU lane and reduces CPU-side overhead. The guide then replaces the manual sequence with torch.nn.functional.scaled_dot_product_attention, available in PyTorch ≥2.1.1. This function fuses the Q·Kᵀ, softmax, and V contraction into one dispatched kernel, automatically selecting FlashAttention-2, a memory-efficient backend, or a math fallback based on hardware and dtype. A fourth script profiles third-party fused kernels accessible through Hugging Face's new kernels interface against the SDPA baseline.
Attention is memory-bandwidth-bound rather than compute-bound, with AMD ROCm FlashAttention benchmarks showing that softmax and masking consume about 40% of Transformer runtime, despite representing 0.02% of total FLOPs. FlashAttention-2 on A100 achieves up to 230 TFLOPs/s forward throughput, approximately 3-9× faster than naive PyTorch attention in microbenchmarks. Hugging Face documentation notes that SDPA's Flash Attention path reduces memory consumption by up to 5× and increases throughput 2-3× on long sequences, as the N×N attention matrix never exists as a standalone tensor. Production stacks moving from unoptimized eager attention to fused SDPA typically report end-to-end inference gains in the 20-40% range, depending on batch size, sequence length, and whether the workload was already memory-saturated.
For architects, the harder integration risk is SDPA's opaque backend dispatch: if head dimension or dtype fall outside FlashAttention's supported envelope, PyTorch silently falls back to the unfused math path, and only the profiler trace will reveal the regression. The custom-kernel script carries additional numerical-stability and compatibility surface, meaning eval harnesses must verify logits across backends before rollout. There is also no discussion of cost-per-token or GPU-hour efficiency at scale, leaving open the question of whether these gains hold under continuous batching in commercial serving stacks.
