Validation Loop Catches Rendering Errors LLMs Miss

Researchers at the University of Ljubljana published a structured LLM workflow that detects chart errors invisible at the code or data level — errors that only appear after rendering.

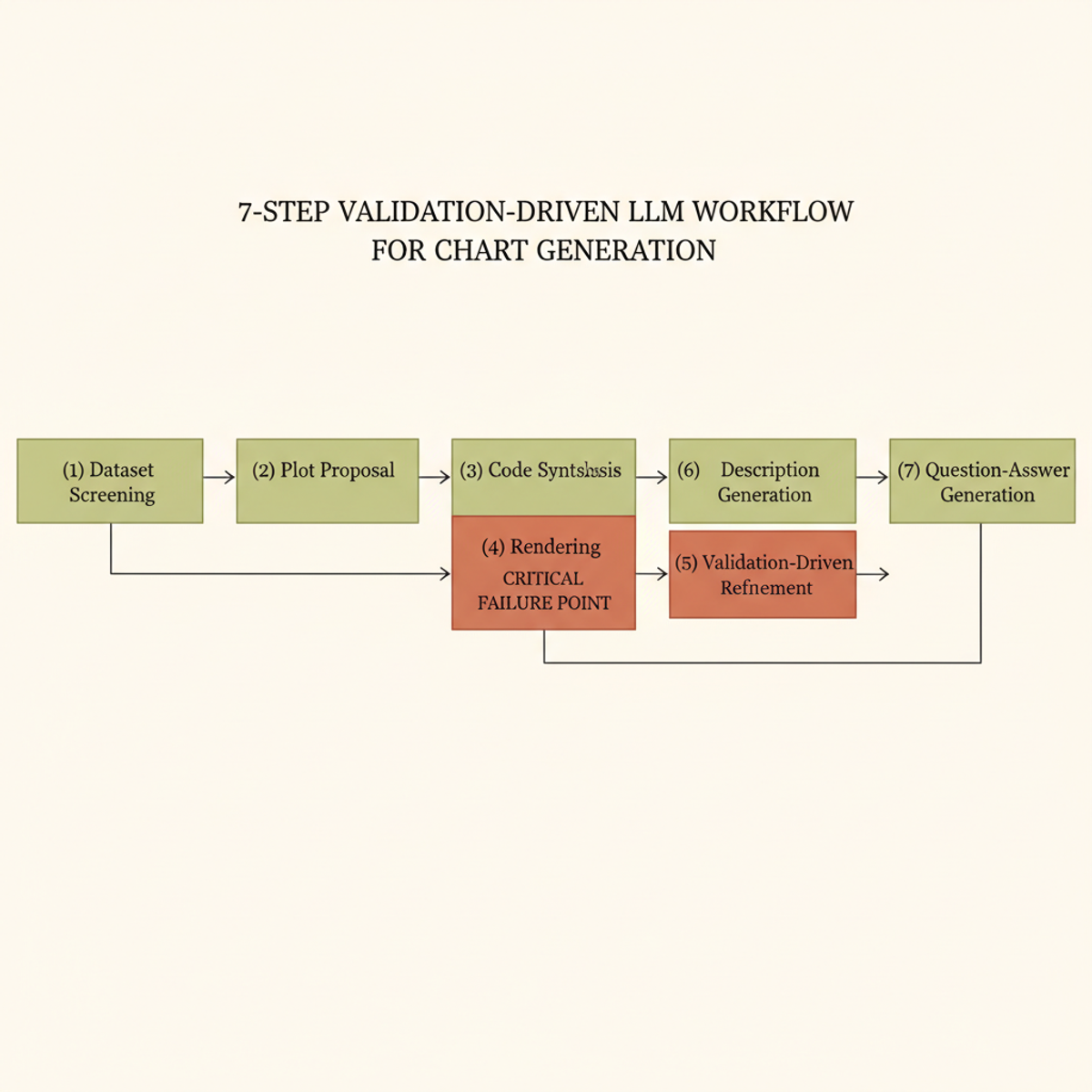

The paper, "Generating Statistical Charts with Validation-Driven LLM Workflows," decomposes chart generation into seven stages: dataset screening, plot proposal, code synthesis, rendering, validation-driven refinement, description generation, and question-answer generation. The key departure from single-shot prompting is the post-render inspection loop. Rather than treating generated code as final, the workflow checks the rendered image for readability and semantic correctness, then triggers targeted refinement if failures are detected. The authors note that "many failures become apparent after rendering and are not detectable from data or code alone."

Applied to 74 UCI datasets, the workflow produced 1,500 charts spanning 24 chart families. Each was packaged with source code, dataset context, natural language description, and 30,003 typed question-answer pairs. This artifact set — executable code, rendered image, metadata, and QA — is absent from most existing chart datasets, which are typically curated for a single task and lack full provenance.

For enterprise analytics and BI teams, the operational implication is direct. Silent rendering failures in LLM-assisted dashboards and reporting pipelines are a known risk: a chart that renders without exception but displays truncated labels, mismatched axes, or semantically wrong encodings passes automated code checks but corrupts the output. The validation-driven refinement stage converts that failure mode into a detectable, correctable event. Retention of intermediate decisions and refinement feedback creates an auditable trace — a requirement in regulated industries where data lineage in executive reporting must be defensible.

The workflow's modular structure generalizes to other LLM code generation tasks where correctness is verifiable only at runtime: SQL query generation, infrastructure-as-code, and ETL pipeline construction. Teams building LLM-assisted development tooling can use this paper's architecture as a tested reference implementation.

To benchmark the corpus, the researchers evaluated 16 multimodal LLMs on the 30,003 chart-grounded question-answer pairs. Questions about chart syntax — identifying chart type, reading axis labels — are nearly saturated across current models. Value extraction, numerical comparison, and multi-step reasoning over encoded quantities remain substantially harder. That gap is diagnostic for teams selecting MLLMs for BI copilot or document intelligence applications, where the harder reasoning tasks matter most.

Limitations are structural. The workflow was validated on UCI datasets, which skew toward clean, well-structured tabular data. Performance on messier enterprise data — sparse tables, mixed units, irregular schemas — is uncharacterized. The computational overhead of the iterative refinement loop at scale is not quantified. The authors publish the full corpus and pipeline code, allowing practitioners to test against domain-specific data.

The paper establishes a replicable blueprint for chart generation pipelines where auditability and failure detection are non-negotiable. For teams already running LLMs in analytics workflows and encountering silent visualization errors, the validation-first architecture is the solution.
